What Is Reo Bar and Why Is It Critical for Concrete Reinforcement?

What is Reo Bar and Why Is It Critical for Concrete Reinforcement?

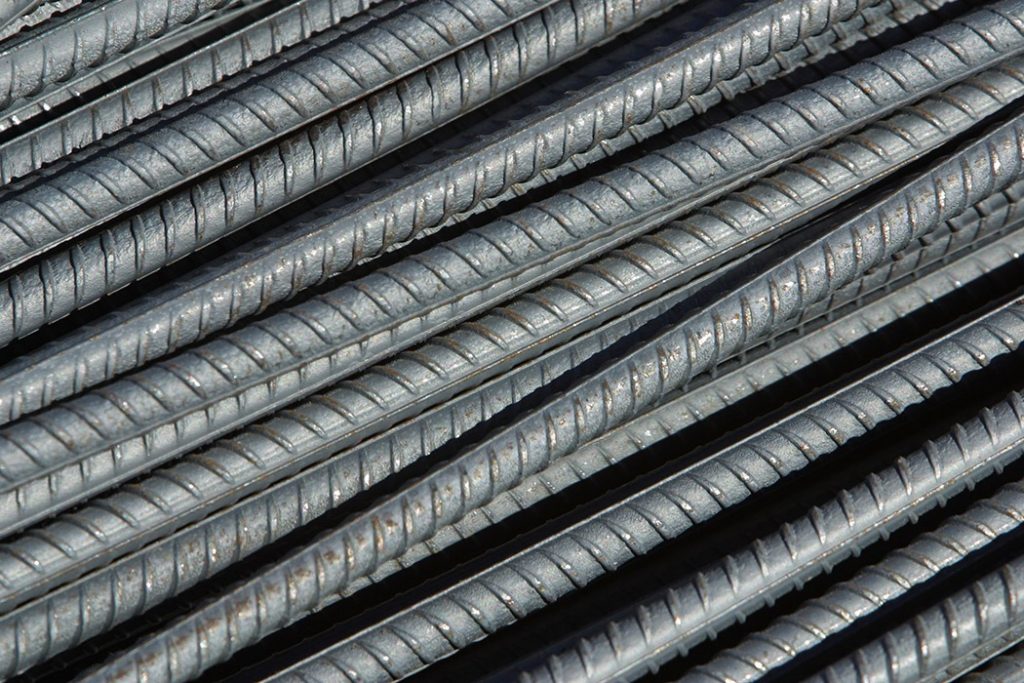

Reo bar, commonly known as reinforcing bar or rebar, is a steel rod embedded within concrete to enhance its structural performance. This essential construction material addresses a fundamental weakness in concrete structures.

Concrete excels at resisting compressive forces—the pushing and squeezing loads that occur when weight bears down on a structure. However, it performs poorly under tensile stress, the pulling forces that cause materials to stretch and crack. Reo bar solve this problem by providing the tensile strength that concrete lacks.

When embedded within concrete, reo bars create a composite material that combines concrete’s compressive strength with steel’s tensile capabilities. This partnership allows structures to withstand diverse loading conditions without failure. The steel reinforcement prevents cracks from propagating through the concrete, distributing stress more evenly across the entire structure.

The critical nature of concrete reinforcement becomes evident in modern construction:

• Structural integrity: Reo bars prevent catastrophic failures in load-bearing elements
• Crack control: Steel reinforcement limits crack width and spread
• Load distribution: Forces transfer efficiently throughout the structure
• Longevity: Properly reinforced concrete resists deterioration and maintains strength over decades

Without reo bars, concrete structures would be limited to simple compression applications. The integration of steel reinforcement has enabled the construction of high-rise buildings, expansive bridges, and complex infrastructure that define contemporary urban landscapes.

What are the Key Properties of Reo Bars?

The properties of reo bars are primarily determined by the composition of steel used in their production. This specific blend of materials provides reo bars with remarkable strength and flexibility, making them ideal for reinforcing concrete structures.

Understanding Steel Reinforcement

Steel reinforcement, commonly known as reo bars, is composed of carbon and iron alloys. These elements work together to create a material that can endure substantial pulling forces while still allowing for movement within the structure.

How Reo Bars Address Concrete’s Weakness

Concrete is a strong material when it comes to bearing weight from above (compression), but it has a significant weakness when it comes to tension—when forces pull or stretch the material. This is where reo bars come into play.

• The tensile strength of reo bars directly counteracts this weakness in concrete.
• Ranging from 250 to 500 megapascals, the tensile strength of steel reo bars fills this crucial gap and creates a composite material that effectively handles both compression and tension forces.

The Importance of Surface Characteristics

The performance of reo bars in bonding with concrete is greatly influenced by their surface characteristics. There are two main types of surface designs for reo bars:

1. Deformed Bars: These bars have raised ribs or patterns running along their length. This design creates a mechanical interlocking effect with the surrounding concrete, enhancing the bond between the two materials.
2. Smooth Bars: Unlike deformed bars, smooth bars rely solely on adhesion for bonding with concrete. While this may be sufficient in some cases, it offers less resistance to slippage under load compared to deformed bars.

The Benefits of Textured Surfaces

In addition to the ribbed pattern on deformed bars, textured surfaces can also play a significant role in improving bonding performance. Research has shown that textured surfaces can increase the contact area between the bar and concrete by up to 40%. This larger contact area helps prevent bar movement during periods of stress, further enhancing the overall strength of the structure.

The Role of Modern Construction Standards

Due to their superior grip and load distribution capabilities, modern construction standards now require the use of deformed bars for most structural applications. This ensures that when concrete experiences tension—such as during an earthquake or heavy wind event—the stress is efficiently transferred to the steel reinforcement rather than causing cracks or failure in the concrete itself.

What Types of Reo Bars are Commonly Used in Construction?

1. Epoxy-Coated Rebar

Epoxy-coated rebar features a protective epoxy resin layer that shields the steel from moisture and chloride penetration, making it ideal for marine environments and structures exposed to de-icing salts. This coating extends the lifespan of reinforced concrete by preventing rust formation.

2. Galvanized Rebar

Galvanized rebar undergoes a zinc coating process that creates a barrier against corrosion. The zinc layer sacrificially corrodes before the steel core, providing reliable protection in moderately aggressive environments at a lower cost than stainless steel alternatives.

3. Stainless Steel Rebar

Stainless steel rebar offers superior corrosion resistance through its chromium content, which forms a passive oxide layer. Whilst more expensive, this option proves cost-effective for critical infrastructure requiring minimal maintenance over decades, particularly in coastal zones and chemical processing facilities.

4. Fibreglass Rebar

Fibreglass rebar provides a lightweight, non-corrosive alternative to steel reinforcement. Its electromagnetic neutrality makes it valuable for MRI facilities and structures requiring radio frequency transparency, though its lower modulus of elasticity requires careful engineering consideration.

5. High-Strength Rebar

High-strength rebar delivers increased tensile capacity through enhanced carbon content and manufacturing processes. This type reduces the quantity of reinforcement needed, optimising construction efficiency in high-load applications.

6. Standard Round Bars

Standard round bars with deformed surfaces remain the most economical choice for general construction where environmental exposure is minimal. Their ribbed pattern ensures mechanical bonding with concrete whilst maintaining cost-effectiveness for residential and light commercial projects.

How are Reo Bars Installed in Concrete Structures?

Cutting and Bending

Reo bar installation begins with precise cutting and bending to match engineering specifications. Steel fabricators use hydraulic cutters and bending machines to shape bars according to structural drawings, creating hooks, stirrups, or specific angles required for different structural elements. This fabrication process ensures each bar fits perfectly within the designated concrete section.

Placement of Reo Bars

Placement of rebar in concrete demands careful attention to spacing and positioning. Bars must sit at specific depths within the formwork, typically maintained using plastic spacers or chairs that keep reinforcement elevated from the base. The correct positioning ensures adequate concrete cover protects the steel from environmental exposure whilst maximising structural performance.

Key placement considerations include:

• Minimum concrete cover: Typically 20-75mm depending on exposure conditions and structural element
• Bar spacing: Sufficient gaps between bars allow concrete to flow freely and bond effectively
• Alignment: Horizontal and vertical bars must intersect at precise angles as specified in structural plans

Securing Reo Bars

Securing reo bars prevents movement during concrete pouring. Steel wire ties bind intersecting bars together, creating a rigid cage that maintains its shape under the weight and pressure of wet concrete. Spot welding or mechanical couplers join bars in high-stress areas where additional connection strength is necessary. Properly secured reinforcement stays in position throughout the pouring and vibration process, ensuring the finished structure performs as engineered. Learn more about where to buy LVL Timber in bulk for infrastructure projects?

Why is Proper Concrete Pouring and Curing Essential When Using Reo Bars?

Does the quality of concrete pouring affect reo bar performance? Absolutely—improper pouring creates voids that compromise the bond between steel and concrete, undermining the entire reinforcement system.

The Importance of Mix Design Compatibility

Mix design compatibility determines whether the concrete can flow adequately around the reo bars without segregation. The water-cement ratio, aggregate size, and admixtures must allow the mixture to penetrate tight spaces between bars whilst maintaining structural integrity. A mix that’s too dry won’t encapsulate the steel properly, whilst an overly wet mix weakens the final structure. For more detailed information on this topic, refer to the BIS standards.

The Role of Vibration Compaction in Concrete

Vibration compaction in concrete eliminates air pockets that form around reo bars during pouring. Mechanical vibrators consolidate the fresh concrete, forcing it into every crevice and ensuring complete contact with the steel surface. This process directly impacts load transfer efficiency—air voids create weak points where cracks initiate under stress.

The Significance of Curing Concrete with Reo Bars

Curing concrete with reo bars requires controlled moisture and temperature conditions for at least seven days, though 28 days achieves optimal strength. Water curing, curing compounds, or wet coverings prevent premature drying that causes shrinkage cracks. These cracks expose reo bars to moisture and oxygen, accelerating corrosion. Proper curing develops the concrete’s full compressive strength, which works in tandem with the reo bars’ tensile capacity to create a composite material far stronger than either component alone.

For comprehensive guidelines on proper concrete practices including pouring and curing methods, you can consult resources such as this manual or refer to the UFC document for further insights into these processes.

Where are Reo Bars Most Important?

Reo bars are essential in various construction applications where strength and durability are critical. Here are some key areas where reo bars play a vital role:

1. High-Rise Buildings

Reo bars are crucial in high-rise buildings where vertical loads and lateral forces require exceptional tensile strength. These reinforced concrete structures rely on rebar throughout columns, shear walls, and floor slabs to maintain structural integrity even during seismic events or high winds.

2. Residential Complexes and Commercial Infrastructure

Residential complexes and commercial infrastructure heavily depend on reo bars for foundations, load-bearing walls, and suspended floors. Multi-storey car parks, shopping centres, and apartment blocks require precise reinforcement to support distributed loads across large spans while preventing deflection and cracking over decades of use.

3. Bridges and Roadways

Bridges and roadways represent some of the most demanding applications of reo bars, where constant traffic loads, environmental exposure, and dynamic forces test material limits. Bridge decks, piers, and abutments incorporate extensive rebar networks to resist both compression from vehicle weights and tension from bending moments.

4. Foundations and Footings

Foundations and footings transfer building loads safely into the ground, with reo bars preventing crack propagation from settlement stresses. Strip footings, pad footings, and raft slabs all require strategic reinforcement placement to distribute loads evenly.

5. Beams

Beams carry substantial bending forces, making reo bars critical for preventing catastrophic failure. The reinforcement positioned near the bottom of beams resists tensile stresses while maintaining the concrete’s compressive capabilities above, creating a composite system that maximises load-bearing capacity and ensures long-term durability across all reinforced concrete structures.

What is Reo Mesh and How Does It Complement Reo Bars?

Reo mesh is a prefabricated welded wire mesh reinforcement consisting of steel bars arranged in a grid pattern and joined at intersecting points. This configuration creates a continuous reinforcement system ideal for distributing loads evenly across large flat surfaces like concrete slabs, pavements, and industrial floors.

The mesh structure eliminates the need for individual bar placement and tying, significantly reducing installation time whilst maintaining consistent spacing throughout the reinforced area. This makes reo mesh types particularly efficient for projects requiring uniform coverage over expansive horizontal surfaces.

Common Reo Mesh Types and Their Applications

Trench mesh features a rectangular configuration specifically designed for narrow structures. These trench mesh applications include footings, strip foundations, and beam reinforcement where the narrow width allows easy placement in confined formwork spaces.

Rectangular and square meshes provide reinforcement for larger floor slabs, driveways, and warehouse floors. The grid dimensions vary based on load requirements, with closer spacing offering greater strength for heavy-duty applications.

Specialized mesh options address specific environmental challenges:

• Galvanized mesh: Zinc coating provides corrosion resistance for outdoor applications and moisture-prone areas
• Stainless steel mesh: Superior protection in highly corrosive environments like coastal construction zones
• Fibreglass mesh: Lightweight alternative offering non-corrosive properties and electromagnetic transparency for sensitive installations

The choice between individual reo bars and mesh depends on structural geometry, with mesh excelling in horizontal applications whilst bars remain essential for vertical and complex three-dimensional reinforcement patterns.

How to Choose the Right Type of Reo Bar or Mesh for a Project

Choosing the right type of reo bar or mesh for a project involves careful consideration of three main factors:

1. Environmental conditions
2. Structural demands
3. Regulatory compliance

These factors directly affect the durability and performance of the reinforced concrete structure.

1. Environmental Conditions

The environment in which the structure will be located plays a crucial role in determining the materials used. Here are some key considerations:

• Coastal Projects: If the project is near the coast, it will be exposed to constant salt spray and moisture. In such cases, it is essential to use epoxy-coated or stainless steel reo bars to prevent corrosion.
• Inland Structures: For structures located inland with minimal exposure to harsh elements, standard carbon steel bars can be used as a cost-effective solution.
• Industrial Sites: Industrial sites that have chemical exposure may require specialised coatings or fibreglass alternatives to protect the reinforcement.

2. Structural Demands

The specific requirements of the structure will determine the type and size of reinforcement needed. Here are some examples:

• High-Rise Buildings: These structures typically require high-strength reo bars (Grade 500N or 500E) to support significant vertical loads.
• Residential Slabs: Lighter grades with standard mesh configurations are usually sufficient for residential slabs.

It is important to note that load calculations performed by structural engineers will specify the exact bar sizes, spacing, and tensile strength ratings required for the project.

3. Regulatory Compliance

Ensuring compliance with relevant standards is crucial for maintaining quality and safety in reinforcement applications. In Australia, this is governed by the Australian Standard AS/NZS 4671, which outlines:

• Minimum tensile strength requirements for different grades
• Dimensional tolerances for bar diameter and rib patterns
• Chemical composition limits for steel reinforcement
• Testing protocols for quality verification

To ensure compliance, it is important to procure materials from certified suppliers who can provide documentation verifying adherence to these specifications. This documentation will not only protect the integrity of the project but also satisfy building code requirements during inspections.

Conclusion

The importance of reo bars in modern construction cannot be overstated. These steel reinforcements transform concrete’s inherent weakness in tension into a composite material capable of withstanding complex structural loads. The reinforced concrete benefits extend from residential homes to towering skyscrapers, where structural durability with rebar ensures decades of safe, reliable performance.

Success depends on three critical factors: selecting the appropriate reo bar type for environmental conditions, following proper installation procedures, and maintaining compliance with AS/NZS 4671 standards. When these elements align, reinforced concrete delivers the tensile strength, crack resistance, and longevity that define quality construction.

Ready to specify reo bars for your next project? Consult with qualified structural engineers to determine the optimal reinforcement solution for your specific requirements.
